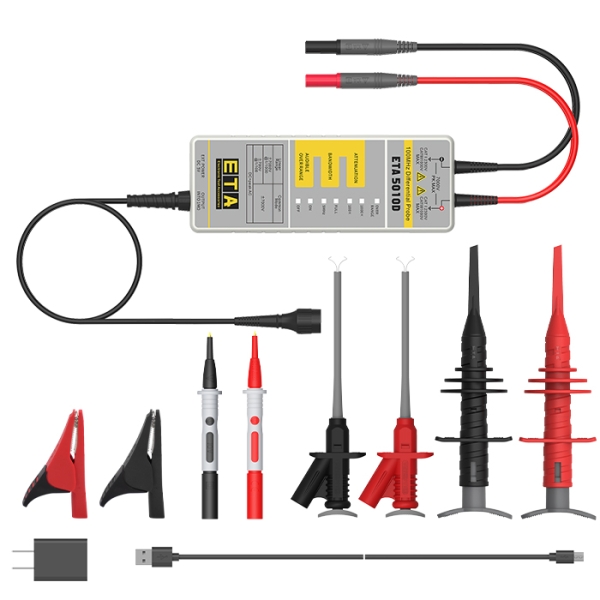

ETA5010D High voltage differential probe

ETA oscilloscope differential probe is very suitable for power testing, switching power supply, inverter, motor drive control, switching power supply research and development, maintenance evaluation.

Safe Floating Measurements

Will not damage the oscilloscope and the device under test

Strong anti-interference ability

Sound and light alarm function

5MHz Bandwidth Limit Feature Selection

Good common mode noise rejection capability

• Bandwidth

  100MHz

• Rise time

  ≤3.5ns

• Accuracy

  ±2%

• Attenuation ratio

  100X;1000X

• Voltage range

  ±700V / ±7000V

• Common mode voltage

  ±7000V DC+ Peak AC

• Maximum input voltage to ground

  1000V CAT III 2300V CAT II Vrms

• Delay time

  16ns

• Input impedance

  Single-ended to ground 5MΩ ± 1%； Two input terminals 10MΩ ± 1%

• Input capacitance

  Single-ended to ground ＜4pF ；Two input terminals ＜2pF

• CMRR

  DC > 80dB ;100KHz > 60dB; 1MHZ > 50dB; 3.2MHz > 30dB; 50MHz > 26dB

• Noise level

  100X ＜ 200mVrms ; 1000X ＜ 1200mVrms

• Overload indication voltage threshold

  100X ≥ 700V; 1000X ≥ 7000V

• Bandwidth Limit (5MHZ)

  ≥-3dB @ 5MHZ

• Overload indicator lamp

  Red Light

• Overload alarm sound

  support; optionally off

• Bias adjustable function

  Support (enter test mode under adjustment)

• Terminal load requirements

  ≥100kΩ

• Power

  USB 5V/1A Adapter
