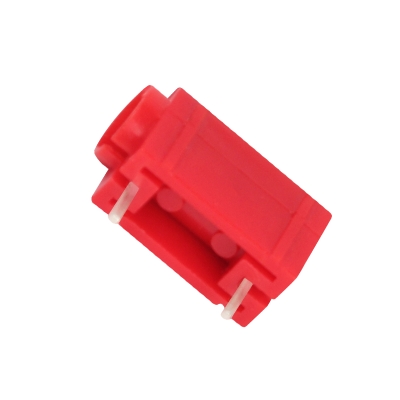

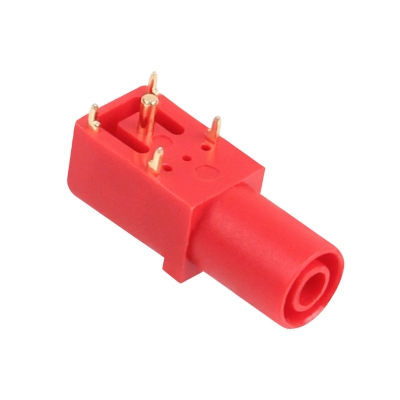

Product name
4mm PCB soldered panel socket
-
Rated voltage
1000V CAT III
-
Rated current
25A
-
Connection method
Welding
-
Connection size
4mm
-
Contact material
Gold-plated brass
-
Insulating material
PA
-
PCB thickness
≤2.5mm
-
Color
Red, black, yellow, green and blue
-
-
-

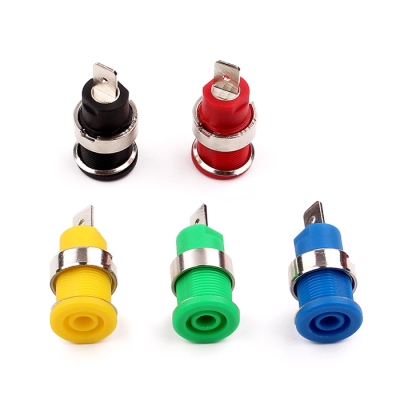

Product name
PCB soldered panel socket
-
Rated voltage
<30Vac/60Vdc
-
Rated current
25A
-
Connection method
Welding
-
Connection size
4mm
-
Contact material
Silver-plated brass
-
Insulating material
PA
-
PCB thickness
≤5mm
-
Color
Red, black, yellow, green and blue
-
-
-

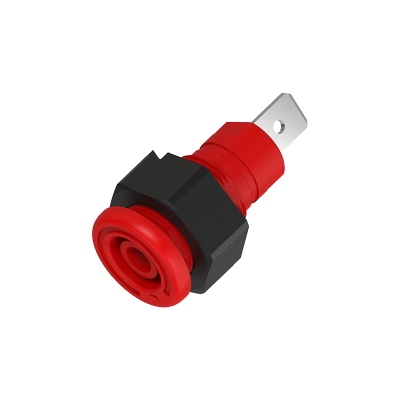

Product name
4mm panel socket
-
Rated voltage
3000V CAT III
-
Rated current
60A
-
Connection method
Direct insertion method
-
Connection size
4mm
-
Contact material
Nickel-plated brass
-
Insulating material
PA
-
Panel Requirements
Metal or plastic
-
Color
Red, black, yellow, green and blue
-
-
-

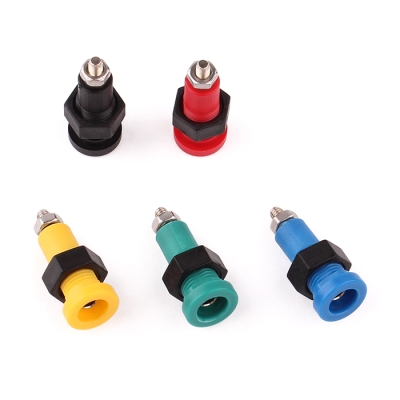

Product name
4mm panel socket
-
Rated voltage
1000V CAT III
-
Rated current
32A
-
Connection method
Welding or OT terminals
-
Connection size
4mm
-
Contact material
Nickel-plated brass
-
Insulating material
PA
-
Panel Requirements
Metal or plastic
-
Color
Red, black, yellow, green and blue
-
-
-
Product name
4mm panel socket
-
Rated voltage
30Vac/60vdc
-
Rated current
30A
-
Connection method
Direct insertion method
-
Connection size
4mm
-
Contact material
Nickel-plated brass
-
Insulating material
PA
-
Panel Requirements
Plastic
-
Color
Red, black, yellow, green and blue
-
-
-

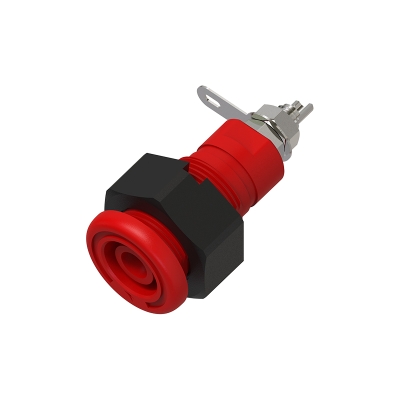

Product name
4mm panel socket
-
Rated voltage
1000V CAT III
-
Rated current
32A
-
Connection method
Welded or 6.3 spring terminal
-
Connection size
4mm
-
Contact material
Nickel-plated brass
-
Insulating material
PA
-
Panel Requirements
Metal or plastic
-
Color
Red, black, yellow, green and blue
-
-
-

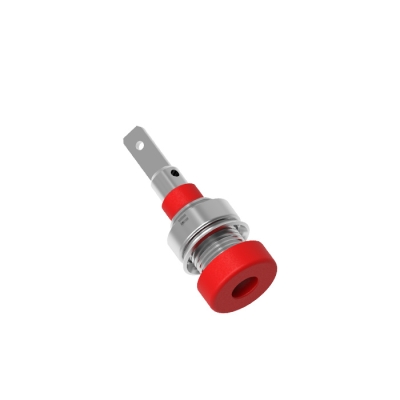

Product name
2mm panel socket
-
Rated voltage
30Vac/60Vdc
-
Rated current
10A
-
Connection method
Welding or inserting springs
-
Connection size
2mm
-
Contact material
Gold-plated brass
-
Insulating material
PA
-
Opening size
5mm
-
Color
Red, black
-
-
-

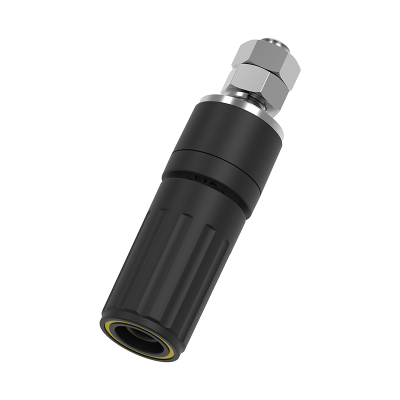

Product name
3mm panel socket
-
Rated voltage
100OV CAT III
-
Rated current
32A
-
Connection method
OT terminal
-
Connection size
3mm
-
Contact material
Nickel-plated brass
-
Insulating material
PA
-
Panel requirements
Metal or plastic
-
Color
Red, black, yellow, green and blue
-
-
-

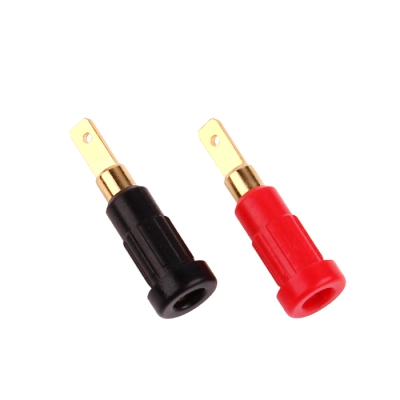

Product name
2mm panel socket
-
Rated voltage
30Vac/60Vdc
-
Rated current
10A
-
Connection method
Welding or 2.8mm contact spring terminals
-
Connection size
2mm
-
Contact material
Nickel-plated brass
-
Insulating material
PA
-
Panel Requirements
Metal or plastic
-
Color
Red, black
-
-
-
Product name
4mm panel socket
-
Rated voltage
1000V CAT III
-
Rated current
32A
-
Connection method
Welded or 6.3 spring terminal
-
Connection size
4mm
-
Contact material
Nickel-plated brass
-
Insulating material
PA
-
Panel Requirements
Metal or plastic
-
Color
Red, black, yellow, green and blue
-
