  • ETA5215B   High voltage differential probe
    • Bandwidth

      200MHz

    • Rise time

      ≤1.75ns

    • Accuracy

      ±2%

    • Attenuation ratio

      50X;500X

    • Voltage range

      ±1500V DC+Peak AC

    • Common mode voltage

      ±1500V DC+ Peak AC

    • Maximum input voltage to ground

      600V CAT III 1000V CAT II Vrms

    • Delay time

      14ns

    • Input impedance

      Single-ended to ground 5MΩ ± 1%;
      Two input terminals 10MΩ ± 1%

    • Input capacitance

      Single-ended to ground <4pF ;Two input terminals <2pF

    • CMRR

      DC > 80dB ;100KHz > 60dB; 1MHZ > 50dB; 3.2MHz > 30dB; 50MHz > 26dB

    • Noise level

      50X < 50mVrms ; 500X < 300mVrms

    • Overload indication voltage threshold

      50X ≥ 150V; 500X ≥ 1500V

    • Bandwidth Limit (5MHZ)

      ≥-3dB @ 5MHZ

    • Overload indicator lamp

      Red Light

    • Overload alarm sound

      support; optionally off

    • Bias adjustable function

      Support

    • Terminal load requirements

      ≥100kΩ

    • Power

      USB 5V/1A Adapter

    $7,049.00
  • ETA5056   High voltage differential probe
    • Bandwidth

      100MHz

    • Rise time

      ≤3.5ns

    • Accuracy

      ±2%

    • Attenuation ratio

      200X;2000X

    • Voltage range

      ±5600V DC+Peak AC

    • Common mode voltage

      ±5600V DC+ Peak AC

    • Maximum input voltage to ground

      2800V CAT I 1400V CAT II Vrms

    • Delay time

      20ns±1ns

    • Linearity

      ±1%

    • Input impedance

      Single-ended to ground 16MΩ ± 1%; Two input terminals 32MΩ ± 1%

    • Input capacitance

      Single-ended to ground <4pF ;Two input terminals <2pF

    • CMRR

      DC > 80dB ;100Hz > 60dB; 1MHZ > 50dB

    • Noise level

      200X < 300mVrms ; 2000X < 2000mVrms

    • Overload indication voltage threshold

      200X ≥ 580V; 2000X ≥ 5800V

    • Overload indicator lamp

      Red Light

    • Input Wire Length

      60mm

    • Output lead length

      90mm

    • Overall dimension

      120mmx55mmx24mm

    • Weight

      150g

    • Working temperature and humidity

      0~40°C,80% or less

    • Save temperature and humidity

      -10~40°C,80% or less

    • Power

      USB 9V/1A Adapter

    $557.00

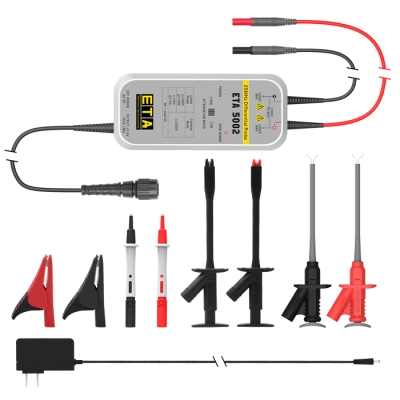

  • ETA5002   High voltage differential probe
    • Bandwidth

      25MHz

    • Rise time

      ≤14ns

    • Accuracy

      ±2%

    • Attenuation ratio

      50X;500X

    • Voltage range

      ±130V /±1300V

    • Common mode voltage

      ±1300V DC+ Peak AC

    • Maximum input voltage to ground

      1000V CAT II 600V CAT III Vrms

    • Delay time

      20ns±1ns

    • Linearity

      ±1%

    • Input impedance

      Single-ended to ground 4MΩ ± 1%; Two input terminals 8MΩ ± 1%

    • Input capacitance

      Single-ended to ground <7pF ;Two input terminals <3.5pF

    • CMRR

      DC > 80dB ;100Hz > 60dB; 1MHZ > 50dB

    • Noise level

      50X < 75mVrms ; 500X < 500mVrms

    • Overload indication voltage threshold

      50X ≥ 140V; 500X ≥ 1400V

    • Overload indicator lamp

      Red Light

    • Input Wire Length

      60mm

    • Output lead length

      90mm

    • Overall dimension

      120mmx55mmx24mm

    • Weight

      150g

    • Working temperature and humidity

      0~40°C,80% or less

    • Save temperature and humidity

      -10~40°C,80% or less

    • Power

      USB 9V/1A Adapter

    $253.00
  • ETA5001   High voltage differential probe
    • Bandwidth

      15MHz

    • Rise time

      ≤23ns

    • Accuracy

      ±2%

    • Attenuation ratio

      50X;500X

    • Voltage range

      ±70V / ±700V

    • Common mode voltage

      ±700V DC+ Peak AC

    • Maximum input voltage to ground

      500V CAT II 300V CAT III Vrms

    • Delay time

      20ns±1ns

    • Linearity

      ±1%

    • Input impedance

      Single-ended to ground 4MΩ ± 1%; Two input terminals 8MΩ ± 1%

    • Input capacitance

      Single-ended to ground <7pF ;Two input terminals <3.5pF

    • CMRR

      DC > 80dB ;100Hz > 60dB; 1MHZ > 50dB

    • Noise level

      50X < 75mVrms ; 500X < 500mVrms

    • Overload indication voltage threshold

      50X ≥ 70V; 500X ≥ 700V

    • Overload indicator lamp

      Red Light

    • Input Wire Length

      60mm

    • Output lead length

      90mm

    • Overall dimension

      120mmx55mmx24mm

    • Weight

      150g

    • Working temperature and humidity

      0~40°C,80% or less

    • Save temperature and humidity

      -10~40°C,80% or less

    • Power

      USB 9V/1A Adapter

    $210.00
  • ETA5005   High voltage differential probe
    • Bandwidth

      50MHz

    • Rise time

      ≤7ns

    • Accuracy

      ±2%

    • Attenuation ratio

      50X;500X

    • Voltage range

      ±130V /±1300V

    • Common mode voltage

      ±1300V DC+ Peak AC

    • Maximum input voltage to ground

      1000V CAT II 600V CAT III Vrms

    • Delay time

      20ns±1ns

    • Linearity

      ±1%

    • Input impedance

      Single-ended to ground 4MΩ ± 1%; Two input terminals 8MΩ ± 1%

    • Input capacitance

      Single-ended to ground <7pF ;Two input terminals <3.5pF

    • CMRR

      DC > 80dB ;100Hz > 60dB; 1MHZ > 50dB

    • Noise level

      50X < 75mVrms ; 500X < 500mVrms

    • Overload indication voltage threshold

      50X ≥ 140V; 500X ≥ 1400V

    • Overload indicator lamp

      Red Light

    • Input Wire Length

      60mm

    • Output lead length

      90mm

    • Overall dimension

      120mmx55mmx24mm

    • Weight

      150g

    • Working temperature and humidity

      0~40°C,80% or less

    • Save temperature and humidity

      -10~40°C,80% or less

    • Power

      USB 9V/1A Adapter

    $304.00

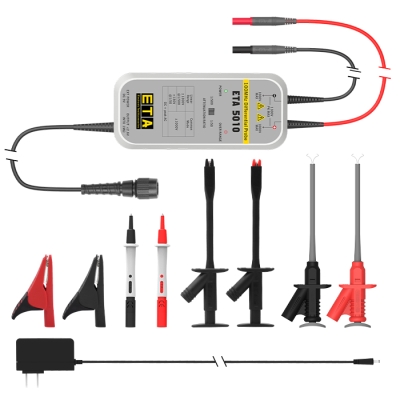

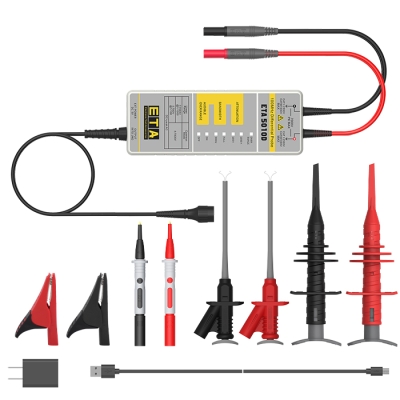

  • ETA5010   High voltage differential probe
    • Bandwidth

      100MHz

    • Rise time

      ≤3.5ns

    • Accuracy

      ±2%

    • Attenuation ratio

      50X;500X

    • Voltage range

      ±130V /±1300V

    • Common mode voltage

      ±1300V DC+ Peak AC

    • Maximum input voltage to ground

      1000V CAT II 600V CAT III Vrms

    • Delay time

      20ns±1ns

    • Linearity

      ±1%

    • Input impedance

      Single-ended to ground 4MΩ ± 1%; Two input terminals 8MΩ ± 1%

    • Input capacitance

      Single-ended to ground <7pF ;Two input terminals <3.5pF

    • CMRR

      DC > 80dB ;100Hz > 60dB; 1MHZ > 50dB

    • Noise level

      50X < 75mVrms ; 500X < 500mVrms

    • Overload indication voltage threshold

      50X ≥ 140V; 500X ≥ 1400V

    • Overload indicator lamp

      Red Light

    • Input Wire Length

      60mm

    • Output lead length

      90mm

    • Overall dimension

      120mmx55mmx24mm

    • Weight

      150g

    • Working temperature and humidity

      0~40°C,80% or less

    • Save temperature and humidity

      -10~40°C,80% or less

    • Power

      USB 9V/1A Adapter

    $362.00

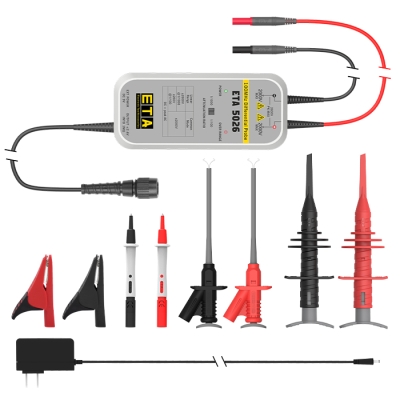

  • ETA5026   High voltage differential probe
    • Bandwidth

      100MHz

    • Rise time

      ≤3.5ns

    • Accuracy

      ±2%

    • Attenuation ratio

      100X;1000X

    • Voltage range

      ±260V / ±2600V

    • Common mode voltage

      ±2600V DC+ Peak AC

    • Maximum input voltage to ground

      2000V CAT I 1000V CAT II Vrms

    • Delay time

      20ns±1ns

    • Linearity

      ±1%

    • Input impedance

      Single-ended to ground 8MΩ ± 1%; Two input terminals 16MΩ ± 1%

    • Input capacitance

      Single-ended to ground <7pF ;Two input terminals <3.5pF

    • CMRR

      DC > 80dB ;100Hz > 60dB; 1MHZ > 50dB

    • Noise level

      100X < 150mVrms ; 1000X < 1000mVrms

    • Overload indication voltage threshold

      100X ≥ 280V; 1000X ≥ 2800V

    • Overload indicator lamp

      Red Light

    • Input Wire Length

      60mm

    • Output lead length

      90mm

    • Overall dimension

      120mmx55mmx24mm

    • Weight

      150g

    • Working temperature and humidity

      0~40°C,80% or less

    • Save temperature and humidity

      -10~40°C,80% or less

    • Power

      USB 9V/1A Adapter

    $428.00

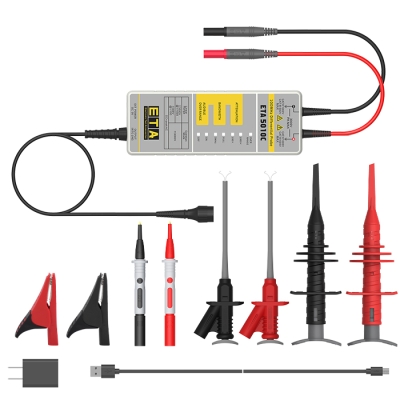

  • ETA5010C   High voltage differential probe
    • Bandwidth

      100MHz

    • Rise time

      ≤3.5ns

    • Accuracy

      ±2%

    • Attenuation ratio

      100X;1000X

    • Voltage range

      ±300V / ±3000V

    • Common mode voltage

      ±3000V DC+ Peak AC

    • Maximum input voltage to ground

      600V CAT III 1000V CAT II Vrms

    • Delay time

      16ns

    • Input impedance

      Single-ended to ground 5MΩ ± 1%; Two input terminals 10MΩ ± 1%

    • Input capacitance

      Single-ended to ground <4pF ;Two input terminals <2pF

    • CMRR

      DC > 80dB ;100KHz > 60dB; 1MHZ > 50dB; 3.2MHz > 30dB; 50MHz > 26dB

    • Noise level

      100X < 100mVrms ; 1000X < 600mVrms

    • Overload indication voltage threshold

      100X ≥ 300V; 1000X ≥ 3000V

    • Bandwidth Limit (5MHZ)

      ≥-3dB @ 5MHZ

    • Overload indicator lamp

      Red Light

    • Overload alarm sound

      support; optionally off

    • Bias adjustable function

      Support (enter test mode under adjustment)

    • Terminal load requirements

      ≥100kΩ

    • Power

      USB 5V/1A Adapter

    $793.00
  • ETA5010D   High voltage differential probe
    • Bandwidth

      100MHz

    • Rise time

      ≤3.5ns

    • Accuracy

      ±2%

    • Attenuation ratio

      100X;1000X

    • Voltage range

      ±700V / ±7000V

    • Common mode voltage

      ±7000V DC+ Peak AC

    • Maximum input voltage to ground

      1000V CAT III 2300V CAT II Vrms

    • Delay time

      16ns

    • Input impedance

      Single-ended to ground 5MΩ ± 1%; Two input terminals 10MΩ ± 1%

    • Input capacitance

      Single-ended to ground <4pF ;Two input terminals <2pF

    • CMRR

      DC > 80dB ;100KHz > 60dB; 1MHZ > 50dB; 3.2MHz > 30dB; 50MHz > 26dB

    • Noise level

      100X < 200mVrms ; 1000X < 1200mVrms

    • Overload indication voltage threshold

      100X ≥ 700V; 1000X ≥ 7000V

    • Bandwidth Limit (5MHZ)

      ≥-3dB @ 5MHZ

    • Overload indicator lamp

      Red Light

    • Overload alarm sound

      support; optionally off

    • Bias adjustable function

      Support (enter test mode under adjustment)

    • Terminal load requirements

      ≥100kΩ

    • Power

      USB 5V/1A Adapter

    $1,071.00

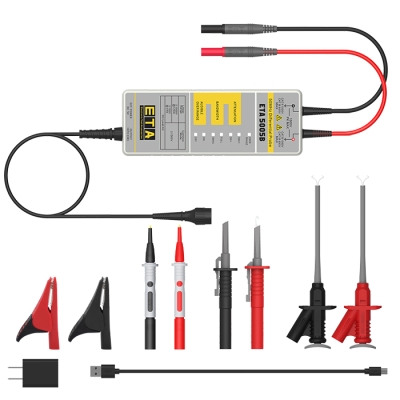

  • ETA5005B   High voltage differential probe
    • Bandwidth

      50MHz

    • Rise time

      ≤5ns

    • Accuracy

      ±2%

    • Attenuation ratio

      50X;500X

    • Voltage range

      ±150V / ±1500V

    • Common mode voltage

      ±1500V DC+ Peak AC

    • Maximum input voltage to ground

      600V CAT III 1000V CAT II Vrms

    • Delay time

      21ns

    • Input impedance

      Single-ended to ground 5MΩ ± 1%; Two input terminals 10MΩ ± 1%

    • Input capacitance

      Single-ended to ground <4pF ;Two input terminals <2pF

    • CMRR

      DC > 80dB ;100KHz > 60dB; 1MHZ > 50dB; 3.2MHz > 30dB; 50MHz > 26dB

    • Noise level

      50X < 50mVrms ; 500X < 300mVrms

    • Overload indication voltage threshold

      50X ≥ 150V; 500X ≥ 1500V

    • Bandwidth Limit (5MHZ)

      ≥-3dB @ 5MHZ

    • Overload indicator lamp

      Red Light

    • Overload alarm sound

      support; optionally off

    • Bias adjustable function

      Support (enter test mode under adjustment)

    • Terminal load requirements

      ≥100kΩ

    • Power

      USB 5V/1A Adapter

    $557.00
