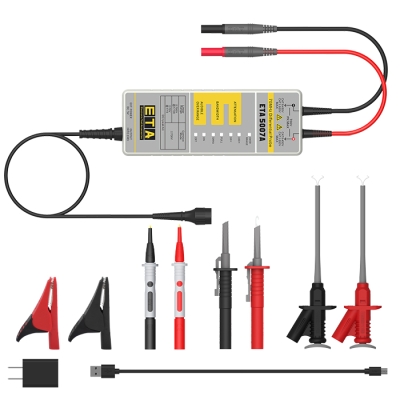

Bandwidth
70MHz
-
Rise time
≤5ns
-
Accuracy
±2%
-
Attenuation ratio
10X;100X
-
Voltage range
±70V / ±700V
-
Common mode voltage
±700V DC+ Peak AC
-
Maximum input voltage to ground
450V CAT II 600V CAT I Vrms
-
Delay time
21ns
-
Input impedance
Single-ended to ground 2.5MΩ ± 1%； Two input terminals 5MΩ ± 1%
-
Input capacitance
Single-ended to ground ＜4pF ；Two input terminals ＜2pF
-
CMRR
DC > 80dB ;100KHz > 60dB; 1MHZ > 50dB; 3.2MHz > 30dB; 50MHz > 26dB
-
Noise level
10X ＜ 20mVrms ; 100X ＜ 120mVrms
-
Overload indication voltage threshold
10X > 70V; 100X > 700V
-
Bandwidth Limit (5MHZ)
≥-3dB @ 5MHZ
-
Overload indicator lamp
Red Light
-
Overload alarm sound
support; optionally off
-
Bias adjustable function
Support (enter test mode under adjustment)
-
Terminal load requirements
≥100kΩ
-
Power
USB 5V/1A Adapter
-
-
-

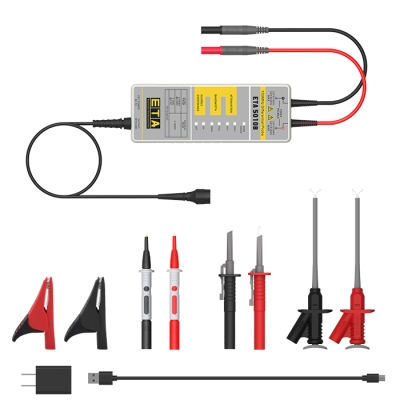

Bandwidth
100MHz
-
Rise time
≤3.5ns
-
Accuracy
±2%
-
Attenuation ratio
50X;500X
-
Voltage range
±150V / ±1500V
-
Common mode voltage
±1500V DC+ Peak AC
-
Maximum input voltage to ground
600V CAT III 1000V CAT II Vrms
-
Delay time
16ns
-
Input impedance
Single-ended to ground 5MΩ ± 1%； Two input terminals 10MΩ ± 1%
-
Input capacitance
Single-ended to ground ＜4pF ；Two input terminals ＜2pF
-
CMRR
DC > 80dB ;100KHz > 60dB; 1MHZ > 50dB; 3.2MHz > 30dB; 50MHz > 26dB
-
Noise level
50X ＜ 50mVrms ; 500X ＜ 300mVrms
-
Overload indication voltage threshold
50X ≥ 150V; 500X ≥ 1500V
-
Bandwidth Limit (5MHZ)
≥-3dB @ 5MHZ
-
Overload indicator lamp
Red Light
-
Overload alarm sound
support; optionally off
-
Bias adjustable function
Support (enter test mode under adjustment)
-
Terminal load requirements
≥100kΩ
-
Power
USB 5V/1A Adapter
-
