Product Code：ETA5101

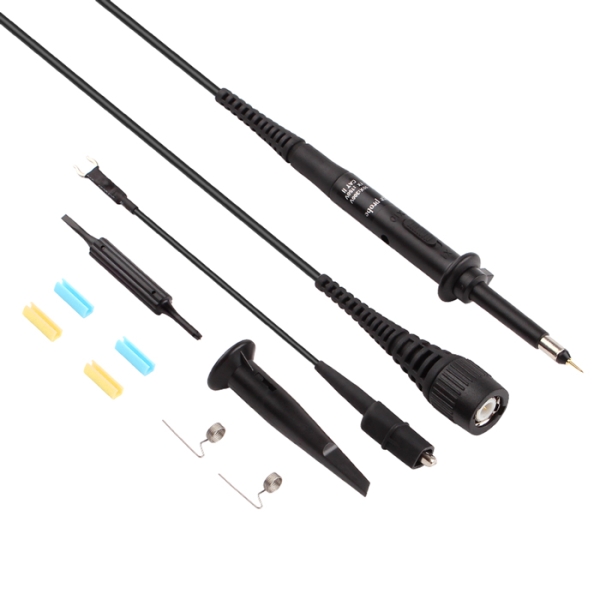

ETA5101 Passive voltage probe
100MHz oscilloscope probe-uses a low-resistance gold-plated probe and a snap-in rotating ground wire, allowing users to quickly manually switch between 1X and 10X. The probe body is made of high-strength plastic, snap-in rotating grounding wire, and soft plastic is used at all bending stress places to ensure the service life of the cable.
$11.00
登录查看优惠价格
Free Shipping
Payment method
Safe and environmentally friendly shopping
Recently Recommended
Product features:
Secure BNC interface
100MHZ working frequency
X1,X10 Attenuation Switch
Included "accessory package" is very suitable for engineers
Suitable for 20M to 100MHz analog or digital oscilloscopes
-
Attenuation ratio
10:1/1:1
-
Bandwidth
100MHz
-
Rise time
3.5nS
-
Input impedance
10:1 10MΩ/1:1 1MΩ
-
Input capacitance
95 pF
-
Compensation range
10:1 10 to 50 pF
-
Input voltage
10:1 400V CAT I, 300V CAT II ；1:1 150V CAT I
-
Temperature and humidity
0℃ to 50 ℃；85% RH
-
Overall length
1.2m
