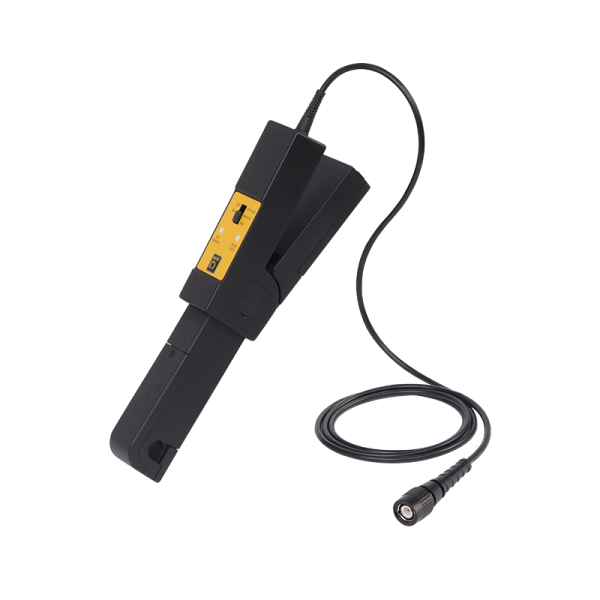

ETA5301C Current probe

ETA5301 series is the 1 universal oscilloscope current probe, compatible with more than 95% of oscilloscopes on the market, with a frequency response measurement range of 100mA to 100A (peak value) up to 5.5MHZ, and BNC output terminals. Connect an oscilloscope to accurately measure AC or DC current waveforms. The 3 position slide switch on the handle panel can select range and ON/OFF.

Product features:

AC/DC dual-useCurrent measurement range: 100mA to 100A

Can measure thin cables (Φ11.8mm)

Narrow jaw design, easy to use in the narrow space of dense wiring

9V alkaline battery, 55 hours of continuous work

Accurately measure, analyze and display distorted current waveforms and harmonics

• Bandwidth

  DC-1.5MHz

• Current

  DC/AC peak 100A

• Rise time

  ≤230ns

• Range sensitivity

  100mV/A、10mV/A

• Typical DC Accuracy

  3% ± 50mA

• phase shift

  DC~65Hz:＜1.5°

• Maximum operating voltage

  CATI600V、CATI 600V、CATII 300V

• Typical battery type and life

  9VNEDA 1604A,IEC 6LR6113 hours minimum

• Zero adjustment mode

  Automatic

• Low battery indication function

  Battery voltage <6.5V, indicator red

• Overload indication

  Current exceeds range, buzzer sounds

• Jaw diameter

  Φ11.8mm
