Product Code：ETA5302B

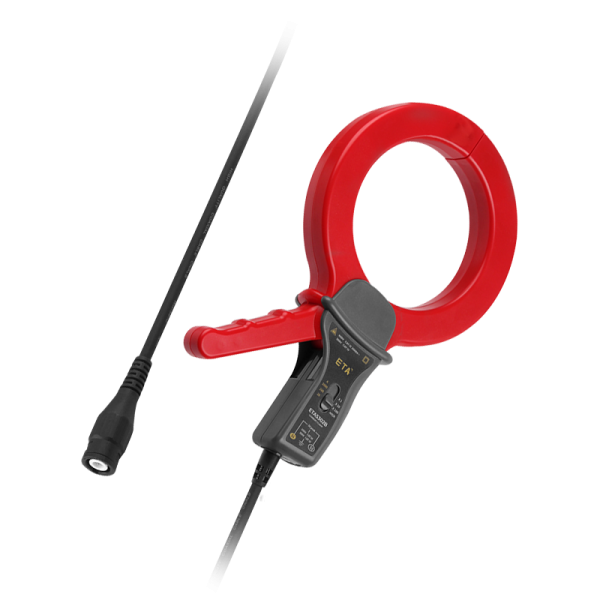

ETA5302B Current probe
ETA5302B oscilloscope current clamp, measurement safety without disconnecting the circuit, easy to achieve connection with the measured object, standard BNC output interface, it is convenient to achieve and oscilloscope, data acquisition, digital voltmeter connection, observation of current waveform, to meet the test requirements of special occasions.
$403.00
Free Shipping
Payment method
Safe and environmentally friendly shopping
Recently Recommended
-
ETA5314 Current probe$1069.00$1069 -
ETA5320 Current probe$613.00$613 -
ETA5321 Current probe$613.00$613 -
ETA5322 Current probe$613.00$613 -
ETA5325 Current probe$613.00$613 -
ETA5315 Current probe$634.00$634 -
ETA5406 Current probe$1024.00$1024 -
ETA5302B Current probe$403.00$403 -
ETA5403 Current probe$702.00$702 -
ETA5303 Current probe$1063.00$1063 -
ETA5302 Current probe$253.00$253 -
ETA5505A Current probe$849.00$849 -
ETA5302A Current probe$360.00$360 -
ETA5505C Current probe$1491.00$1491
-
ETA5520A Current probe$634.00$634
-
ETA5540B Current probe$1063.00$1063
-
ETA5540A Current probe$849.00$849
-
ETA56150A Current probe$2764.00$2764 -
ETA5303A Current probe$999.00$999 -
ETA56300A Current probe$3193.00$3193 -
ETA56150U Current probe$2121.00$2121 -
ETA5540C Current probe$1491.00$1491
-
ETA56300U Current probe$2764.00$2764 -
ETA56500A Current probe$3836.00$3836
Main application
Measuring the harmonic composition of the current
Detecting sinusoidal current waveform
Measuring the phase shift in a sine wave
Current of semiconductor switch
distributed current monitoring
power bus monitoring
Monitor harmonics, power and power quality
Large motor, pump, fan test IGBT, MOSFET tube current measurement
-
Bandwidth
10Hz to 100KHz
-
Current
AC peak 2000A
-
Rise time
≤3.5us
-
Range sensitivity
1mV/A、10mV/A、100mV/A
-
Typical DC Accuracy
1% + 1mV
-
Maximum operating voltage
CATIII 600V
-
Jaw diameter
100mm
-
Weight
650g
-
Overall dimension
216 x11 x45mm
-
Temperature and humidity
0~50°C,85%or less /-10~45°C,85% or less
