Product Code：ETA5302A

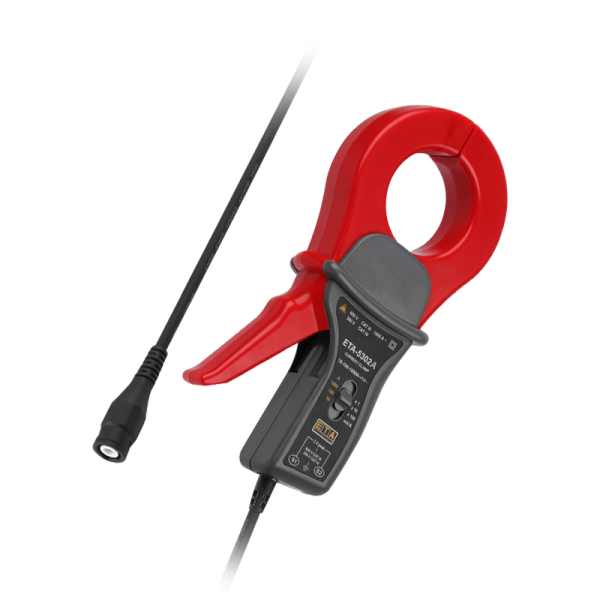

ETA5302A Current probe
ETA5302/A oscilloscope current clamp, measurement safety without disconnecting the circuit, easy to realize connection with the measured object, standard BNC output interface, it is very convenient to realize connection with oscilloscope, data collector, digital voltmeter, observation of current waveform, to meet the test requirements of special occasions.
$360.00
Free Shipping
Payment method
Safe and environmentally friendly shopping
Recently Recommended
-
ETA5314 Current probe$1069.00$1069 -
ETA5320 Current probe$613.00$613 -
ETA5321 Current probe$613.00$613 -
ETA5322 Current probe$613.00$613 -
ETA5325 Current probe$613.00$613 -
ETA5315 Current probe$634.00$634 -
ETA5406 Current probe$1024.00$1024 -
ETA5302B Current probe$403.00$403 -
ETA5403 Current probe$702.00$702 -
ETA5303 Current probe$1063.00$1063 -
ETA5302 Current probe$253.00$253 -
ETA5505A Current probe$849.00$849 -
ETA5302A Current probe$360.00$360 -
ETA5505C Current probe$1491.00$1491
-
ETA5520A Current probe$634.00$634
-
ETA5540B Current probe$1063.00$1063
-
ETA5540A Current probe$849.00$849
-
ETA56150A Current probe$2764.00$2764 -
ETA5303A Current probe$999.00$999 -
ETA56300A Current probe$3193.00$3193 -
ETA56150U Current probe$2121.00$2121 -
ETA5540C Current probe$1491.00$1491
-
ETA56300U Current probe$2764.00$2764 -
ETA56500A Current probe$3836.00$3836
Main application
Measuring the harmonic composition of the current
Detecting sinusoidal current waveform
Measuring the phase shift in a sine wave
Current of semiconductor switch
distributed current monitoring
power bus monitoring
Monitor harmonics, power and power quality
Large motor, pump, fan test IGBT, MOSFET tube current measurement
-
Bandwidth
10Hz to 100KHz
-
Current
AC peak 1000A
-
Rise time
≤3.5us
-
Range sensitivity
1mV/A、10mV/A、100mV/A
-
Typical DC Accuracy
0.8% + 1mV
-
Maximum operating voltage
CATIII 600V
-
Jaw diameter
52mm
-
Weight
650g
-
Overall dimension
216mmx11mmx45 mm
-
Temperature and humidity
0~50°C,85%or less /-10~45°C,85% or less
