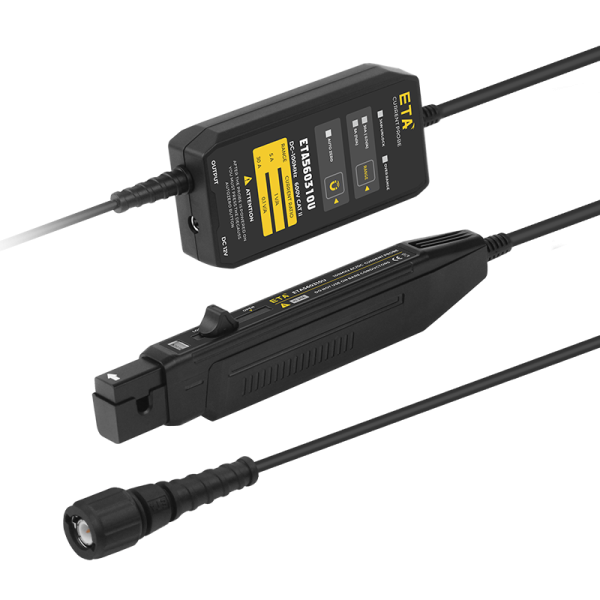

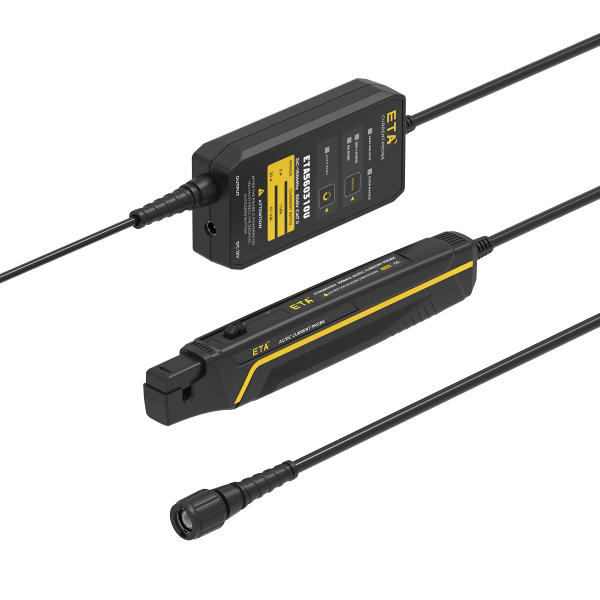

ETA560310U Current probe
Recently Recommended
-
ETA5314 Current probe$1069.00$1069 -
ETA5320 Current probe$613.00$613 -
ETA5321 Current probe$613.00$613 -
ETA5322 Current probe$613.00$613 -
ETA5325 Current probe$613.00$613 -
ETA5315 Current probe$634.00$634 -
ETA5406 Current probe$1024.00$1024 -
ETA5302B Current probe$403.00$403 -
ETA5403 Current probe$702.00$702 -
ETA5303 Current probe$1063.00$1063 -
ETA5302 Current probe$253.00$253 -
ETA5505A Current probe$849.00$849 -
ETA5302A Current probe$360.00$360 -
ETA5505C Current probe$1491.00$1491
-
ETA5520A Current probe$634.00$634
-
ETA5540B Current probe$1063.00$1063
-
ETA5540A Current probe$849.00$849
-
ETA56150A Current probe$2764.00$2764 -
ETA5303A Current probe$999.00$999 -
ETA56300A Current probe$3193.00$3193 -
ETA56150U Current probe$2121.00$2121 -
ETA5540C Current probe$1491.00$1491
-
ETA56300U Current probe$2764.00$2764 -
ETA56500A Current probe$3836.00$3836
Product features:
AC/DC dual-use
Current measurement range: 5mA to 30Arms
Can measure the fine cable (Ø5mm)
Accurately measure, analyze and display distorted current waveforms and harmonics
-
Bandwidth
DC-100MHz
-
Current
DC/AC RMS 30A
-
Rise time
≤3.5ns
-
Range sensitivity
0.1V/A 1V/A
-
Typical DC Accuracy
士1%+5mA@1V/A 士1%+20mA@0.1V/A
-
Maximum operating voltage
600V CATII 300V CATIII
-
Zero adjustment mode
Automatic
-
Power supply modenction
12V/2A power supply
-
Jaw diameter
Φ5mm
-
Interface Type
BNC
-
Weight
255g
-
Overall dimension
Current clamp handle size:176mm x 39.5mm x 18mm// Control box size:91.5mm x 40mm x 26.5mm
-
Delay time
Probe host 14ns //BNC 5ns (line length 1 m)
-
Cable length
Control box to BNC connector cable length: 1m// Cable length from control box to current clamp: 1m
