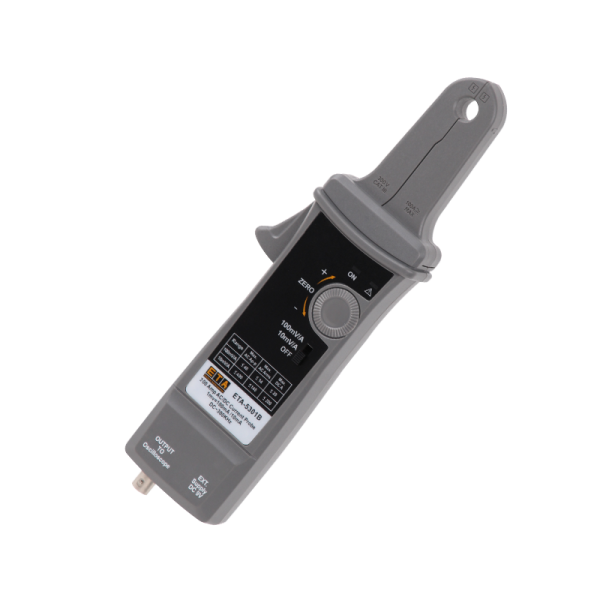

ETA5301B Current probe


Recently Recommended
ETA5301A/B is the 1 universal oscilloscope current probe, compatible with more than 95% of oscilloscopes on the market, with a frequency response measurement range of 50mA to 200A (peak value) up to 300KHz, and BNC output terminals. Connect an oscilloscope to accurately measure AC or DC current waveforms. The 3 position sliding switch on the handle panel can select range and ON/OFF
Product features:
AC/DC dual-use
Current measurement range: 50mA to 200A
Can measure thin cable (Ø11mm)
Narrow jaw design, easy to use in the narrow space of dense wiring
9V alkaline battery, 13 hours of continuous work
Accurately measure, analyze and display distorted current waveforms and harmonics
-
Bandwidth
DC-300KHz
-
Current
DC/AC peak 200A
-
Rise time
≤1.2us
-
Range sensitivity
100mV/A、10mV/A
-
Typical DC Accuracy
3% ± 50mA
-
Maximum operating voltage
CATI600V、CATI 600V、CATII 300V
-
Typical battery type and life
9VNEDA 1604A,IEC 6LR6113 hours minimum (l each)
-
Zero adjustment mode
Manual
-
Low battery indication function
Battery voltage <6.5V, indicator red
-
Overload indication
Current exceeds range, buzzer sounds
-
Jaw diameter
Φ11mm
