Product Code：ETA5380

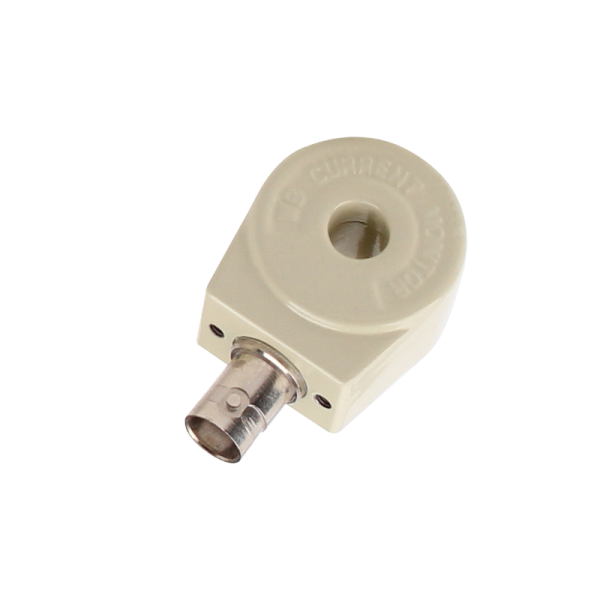

ETA5380 Current probe
ETA5380 high-frequency current test ring is the 1 universal oscilloscope current waveform measurer. BNC's interface is compatible with mainstream oscilloscopes currently on the market and can only measure AC. The product has high frequency and high precision, and is very suitable for testing high-speed signals.
$720.00
Free Shipping
Payment method
Safe and environmentally friendly shopping
Recently Recommended
-
ETA5314 Current probe$1069.00$1069 -
ETA5320 Current probe$613.00$613 -
ETA5321 Current probe$613.00$613 -
ETA5322 Current probe$613.00$613 -
ETA5325 Current probe$613.00$613 -
ETA5315 Current probe$634.00$634 -
ETA5406 Current probe$1024.00$1024 -
ETA5302B Current probe$403.00$403 -
ETA5403 Current probe$702.00$702 -
ETA5303 Current probe$1063.00$1063 -
ETA5302 Current probe$253.00$253 -
ETA5505A Current probe$849.00$849 -
ETA5302A Current probe$360.00$360 -
ETA5505C Current probe$1491.00$1491
-
ETA5520A Current probe$634.00$634
-
ETA5540B Current probe$1063.00$1063
-
ETA5540A Current probe$849.00$849
-
ETA56150A Current probe$2764.00$2764 -
ETA5303A Current probe$999.00$999 -
ETA56300A Current probe$3193.00$3193 -
ETA56150U Current probe$2121.00$2121 -
ETA5540C Current probe$1491.00$1491
-
ETA56300U Current probe$2764.00$2764 -
ETA56500A Current probe$3836.00$3836
Product features:
20MHz maximum measurement frequency
80A maximum measured current
AC measurements only
-
Bandwidth
1Hz-20MHz
-
Current
AC 80A RMS
-
Pulse Current
AC 7500A peak
-
Accuracy
±1%
-
Rise time
≤20ns
-
Range sensitivity
1V/10A
-
Input impedance
1MΩ
-
Opening diameter
18mm
-
Cable length
100mm
-
Overall dimension
216x111x45mm
-
Weight
160g
-
Temperature
0~65℃
