Oscilloscope Probes
Home > Mall > Oscilloscope Probes
  • ETA5103   Passive voltage probe
    • Attenuation ratio

      10:1 / 1:1

    • Bandwidth

      DC to 300MHz

    • Rise time

      1.2nS

    • Input impedance

      10MΩ / 1MΩ

    • Input capacitance

      12 pF / 95 pF

    • Compensation range

      10 to 50 pF

    • Input voltage

      10:1 400V CAT I, 300V CAT II ;1:1 150V CAT I

    • Temperature and humidity

      0℃ to 50 ℃;85% RH

    • Overall length

      1.2m

    $28.00
  • ETA5105   Passive voltage probe
    • Attenuation ratio

      10:1 / 1:1

    • Bandwidth

      DC to 500MHz

    • Rise time

      0.7nS

    • Input impedance

      10MΩ / 1MΩ

    • Input capacitance

      9 pF / 95 pF

    • Compensation range

      10 to 50 pF

    • Input voltage

      10:1 400V CAT I, 300V CAT II;1:1 150V CAT I

    • Temperature and humidity

      0℃ to 50 ℃;85% RH

    • Overall length

      1.2m

    $129.00
  • ETA5101   Passive voltage probe
    • Attenuation ratio

      10:1/1:1

    • Bandwidth

      100MHz

    • Rise time

      3.5nS

    • Input impedance

      10:1 10MΩ/1:1 1MΩ

    • Input capacitance

      95 pF

    • Compensation range

      10:1 10 to 50 pF

    • Input voltage

      10:1 400V CAT I, 300V CAT II ;1:1 150V CAT I

    • Temperature and humidity

      0℃ to 50 ℃;85% RH

    • Overall length

      1.2m

    $11.00
  • ETA5120   Single-ended high-voltage probe
    • Attenuation ratio

      100:1

    • Bandwidth

      DC to 100MHz

    • Rise time

      3.5nS

    • Input impedance

      100MΩ

    • Input capacitance

      5.5 pF

    • Compensation range

      10 to 30 pF

    • Input voltage

      2000V DC/Peak AC

    • Temperature and humidity

      0℃ to 50 ℃;85% RH

    • Overall length

      1.35m

    $34.00

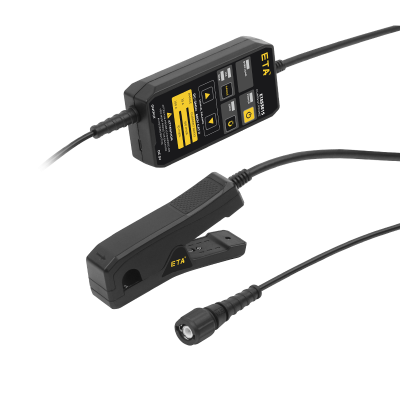

  • ETA5301S  Current probe
    • Bandwidth

      DC-3MHz

    • Current

      DC/AC peak 100A

    • Rise time

      ≤116ns

    • Range sensitivity

      100mV/A、10mV/A

    • Typical DC Accuracy

      3% ± 50mA

    • phase shift

      DC~65Hz:<1°

    • Maximum operating voltage

      CATI600V、CATI 600V、CATII 300V

    • Zero adjustment mode

      Manual

    • Power supply modenction

      5V/2A power supply

    • Overload indication

      Current overrange, indicator light red

    • Jaw diameter

      Φ13mm

    • Interface Type

      BNC

    • Weight

      283g

    • Overall dimension

      100 mmx23mmx55 mm

    $964.00

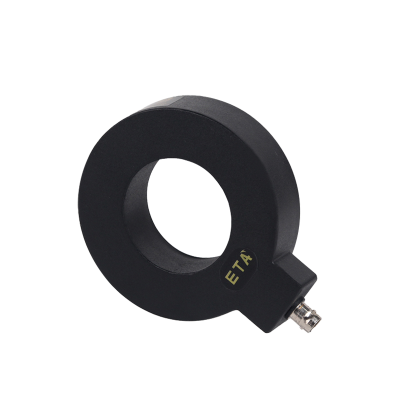

  • ETA5314A   Current probe
    • Bandwidth

      10Hz-5MHz

    • Current

      AC 200A RMS

    • Pulse Current

      AC 100000A peak

    • Accuracy

      ±1%

    • Rise time

      ≤200ns

    • Range sensitivity

      1mV/A

    • Input impedance

      1MΩ

    • Opening diameter

      50mm

    • Cable length

      100mm

    • Overall dimension

      134.6x108x32mm

    • Weight

      720g

    • Temperature and humidity

      -20~80°C、<80% RH

    $2,100.00
