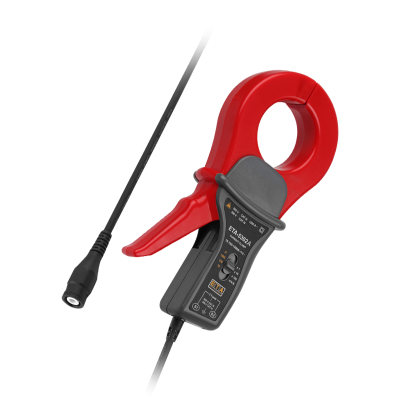

Bandwidth
10Hz to 100KHz
-
Current
AC peak 1000A
-
Rise time
≤3.5us
-
Range sensitivity
1mV/A、10mV/A、100mV/A
-
Typical DC Accuracy
1% + 1mV
-
Maximum operating voltage
CATIII 600V
-
Jaw diameter
52mm
-
Weight
650g
-
Overall dimension
216mmx11mmx45 mm
-
Temperature and humidity
0~50°C,85%or less /-10~45°C,85% or less
-
-
-

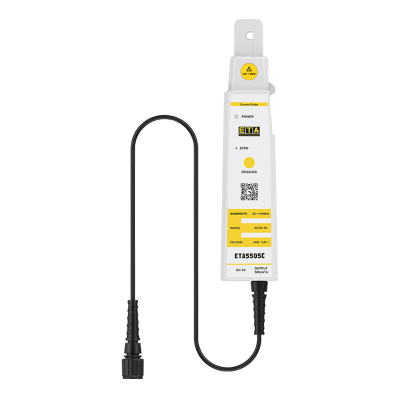

Bandwidth
DC-30MHz
-
Current
DC/AC peak 5A
-
Rise time
≤12ns
-
Range sensitivity
500mV/A
-
Typical DC Accuracy
士1%rdg.+lmV
-
Maximum operating voltage
CATI 400V
-
Zero adjustment mode
Automatic
-
Power supply modenction
5V/2A power supply
-
Jaw diameter
Φ4.5mm
-
Interface Type
BNC
-
Weight
200g
-
Overall dimension
230mmx45.5mmx24.5mm
-
Maximum pulse current
5A(TP≤10uS)
-
Noise
≤0.2mVrms
-
Linearity
±1%
-
Delay time
20ns
-
Cable length
130cm
-
-
-
Bandwidth
10Hz to 100KHz
-
Current
AC peak 1000A
-
Rise time
≤3.5us
-
Range sensitivity
1mV/A、10mV/A、100mV/A
-
Typical DC Accuracy
0.8% + 1mV
-
Maximum operating voltage
CATIII 600V
-
Jaw diameter
52mm
-
Weight
650g
-
Overall dimension
216mmx11mmx45 mm
-
Temperature and humidity
0~50°C,85%or less /-10~45°C,85% or less
-
-
-
Bandwidth
DC-100MHz
-
Current
DC/AC peak 5A
-
Rise time
≤3.5ns
-
Range sensitivity
500mV/A
-
Typical DC Accuracy
士1%rdg.+lmV
-
Maximum operating voltage
CATI 400V
-
Zero adjustment mode
Automatic
-
Power supply modenction
5V/2A power supply
-
Jaw diameter
Φ4.5mm
-
Interface Type
BNC
-
Weight
200g
-
Overall dimension
230mmx45.5mmx24.5mm
-
Maximum pulse current
5A(TP≤10uS)
-
Noise
≤0.2mVrms
-
Linearity
±1%
-
Delay time
20ns
-
Cable length
130cm
-
-
-
Bandwidth
DC-30MHz
-
Current
DC/AC peak 20A
-
Rise time
≤12ns
-
Range sensitivity
100mV/A
-
Typical DC Accuracy
士2%rdg
-
Maximum operating voltage
CATI 400V
-
Zero adjustment mode
Automatic
-
Power supply modenction
5V/2A power supply
-
Jaw diameter
Φ4.5mm
-
Interface Type
BNC
-
Weight
200g
-
Overall dimension
230mmx45.5mmx24.5mm
-
Maximum pulse current
25A(TP≤10uS)
-
Noise
≤1mVrms
-
Linearity
±1%
-
Delay time
20ns
-
Cable length
130cm
-
-
-
Bandwidth
DC-50MHz
-
Current
DC/AC peak 40A
-
Rise time
≤7ns
-
Range sensitivity
50mV/A
-
Typical DC Accuracy
士2%rdg
-
Maximum operating voltage
CATI 400V
-
Zero adjustment mode
Automatic
-
Power supply modenction
5V/2A power supply
-
Jaw diameter
Φ4.5mm
-
Interface Type
BNC
-
Weight
200g
-
Overall dimension
230mmx45.5mmx24.5mm
-
Maximum pulse current
50A(TP≤10uS)
-
Noise
≤1mVrms
-
Linearity
±1%
-
Delay time
20ns
-
Cable length
130cm
-
-
-
Bandwidth
DC-30MHz
-
Current
DC/AC peak 40A
-
Rise time
≤12ns
-
Range sensitivity
50mV/A
-
Typical DC Accuracy
士2%rdg
-
Maximum operating voltage
CATI 400V
-
Zero adjustment mode
Automatic
-
Power supply modenction
5V/2A power supply
-
Jaw diameter
Φ4.5mm
-
Interface Type
BNC
-
Weight
200g
-
Overall dimension
230mmx45.5mmx24.5mm
-
Maximum pulse current
50A(TP≤10uS)
-
Noise
≤1mVrms
-
Linearity
±1%
-
Delay time
20ns
-
Cable length
130cm
-
-
-

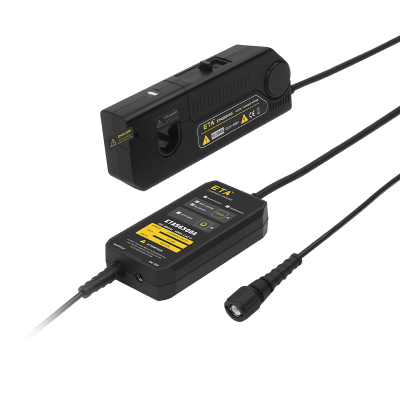

Bandwidth
DC-20MHz
-
Current
DC/AC RMS 150A
-
Rise time
≤18ns
-
Range sensitivity
0.1V/A 0.01V/A
-
Typical DC Accuracy
士1%+10mA@0.1V/A 士1%+100mA@0.01V/A
-
Maximum operating voltage
600V CATII 300V CATIII
-
Zero adjustment mode
Automatic
-
Power supply modenction
12V/2A power supply
-
Jaw diameter
Φ19mm
-
Interface Type
BNC
-
Weight
523g
-
Overall dimension
Control box: 109mm x 24.2mm x 57.8mm //Current clamp: 170mm x 30mm x 65mm
-
Delay time
Probe host 31ns //BNC 5ns (line length 1 m)
-
Cable length
Control box to BNC connector cable length: 0.9m// Cable length from control box to current clamp: 1.4m
-
-
-

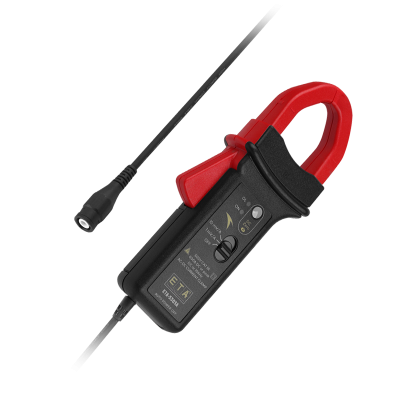

Bandwidth
DC-10KHz
-
Current
DC/AC peak 600A
-
Rise time
≤35us
-
Range sensitivity
1mV/A、10mV/A
-
Typical DC Accuracy
+1.5%+5mV
-
Maximum operating voltage
CATI600V、CATI 600V、CATII 300V
-
Typical battery type and life
9V NEDA1604A,IEC 6LR61 40 hoursminimum (leach)
-
Zero adjustment mode
Automatic
-
Overload indication
Current out of range, red light flashing
-
Jaw diameter
Φ30 mm /Φ24 mm x2
-
Weight
440g
-
Overall dimension
224x97x44mm
-
-
-
Bandwidth
DC-8MHz
-
Current
DC/AC RMS 300A
-
Rise time
≤44ns
-
Range sensitivity
0.1V/A 0.01V/A
-
Typical DC Accuracy
士1%+10mA@0.1V/A 士1%+100mA@0.01V/A
-
Maximum operating voltage
600V CATII 300V CATIII
-
Zero adjustment mode
Automatic
-
Power supply modenction
12V/2A power supply
-
Jaw diameter
Φ19mm
-
Interface Type
BNC
-
Weight
523g
-
Overall dimension
Control box: 109mm x 24.2mm x 57.8mm //Current clamp: 170mm x 30mm x 65mm
-
Delay time
Probe host 41ns //BNC 5ns (line length 1 m)
-
Cable length
Control box to BNC connector cable length: 0.9m// Cable length from control box to current clamp: 1.4m
-
