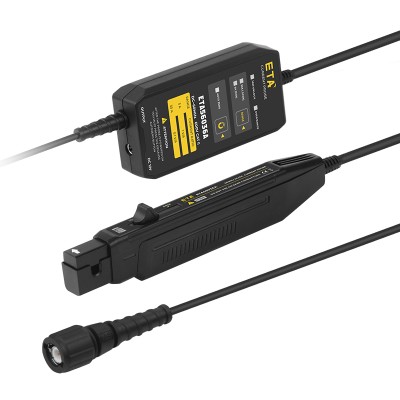

Bandwidth
DC-60MHz
-
Current
DC/AC RMS 30A
-
Rise time
≤5.84ns
-
Range sensitivity
0.1V/A 1V/A
-
Typical DC Accuracy
士1%+1mA@1V/A 士1%+10mA@0.1V/A
-
Maximum operating voltage
600V CATII 300V CATIII
-
Zero adjustment mode
Automatic
-
Power supply modenction
12V/2A power supply
-
Jaw diameter
Φ5mm
-
Interface Type
BNC
-
Weight
255g
-
Overall dimension
Current clamp handle size (length * width * height):176mm x 39.5mm x 18mm// Control box size (length * width * height):91.5mm x 40mm x 26.5mm
-
Delay time
Probe host 14ns //BNC 5ns (line length 1 m)
-
Cable length
Control box to BNC connector cable length: 1m// Cable length from control box to current clamp: 1m
-
-
-

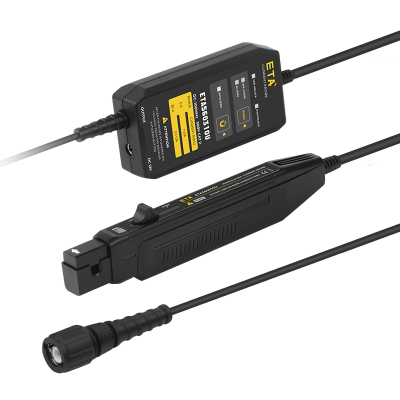

Bandwidth
DC-100MHz
-
Current
DC/AC RMS 30A
-
Rise time
≤3.5ns
-
Range sensitivity
0.1V/A 1V/A
-
Typical DC Accuracy
士1%+5mA@1V/A 士1%+20mA@0.1V/A
-
Maximum operating voltage
600V CATII 300V CATIII
-
Zero adjustment mode
Automatic
-
Power supply modenction
12V/2A power supply
-
Jaw diameter
Φ5mm
-
Interface Type
BNC
-
Weight
255g
-
Overall dimension
Current clamp handle size:176mm x 39.5mm x 18mm// Control box size:91.5mm x 40mm x 26.5mm
-
Delay time
Probe host 14ns //BNC 5ns (line length 1 m)
-
Cable length
Control box to BNC connector cable length: 1m// Cable length from control box to current clamp: 1m
-
-
-

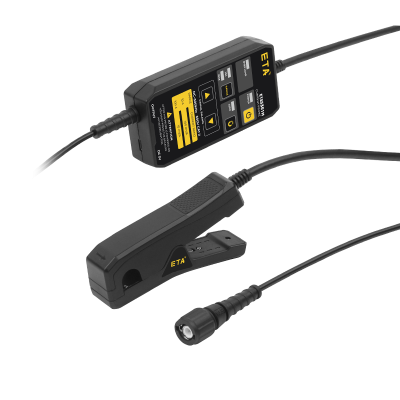

Bandwidth
DC-1MHz
-
Current
DC/AC peak 100A
-
Rise time
≤350ns
-
Range sensitivity
100mV/A、10mV/A
-
Typical DC Accuracy
3% ± 50mA
-
phase shift
DC~65Hz:＜1.5°
-
Maximum operating voltage
CATI600V、CATI 600V、CATII 300V
-
Zero adjustment mode
Manual
-
Power supply modenction
5V/2A power supply
-
Overload indication
Current overrange, indicator light red
-
Jaw diameter
Φ13mm
-
Interface Type
BNC
-
Weight
283g
-
Overall dimension
100 mmx23mmx55 mm
-
-
-
Bandwidth
DC-500KHz
-
Current
DC/AC peak 100A
-
Rise time
≤700ns
-
Range sensitivity
100mV/A、10mV/A
-
Typical DC Accuracy
3% ± 50mA
-
phase shift
DC~65Hz:＜1.5°
-
Maximum operating voltage
CATI600V、CATI 600V、CATII 300V
-
Zero adjustment mode
Manual
-
Power supply modenction
5V/2A power supply
-
Overload indication
Current overrange, indicator light red
-
Jaw diameter
Φ13mm
-
Interface Type
BNC
-
Weight
283g
-
Overall dimension
100 mmx23mmx55 mm
-
-
-

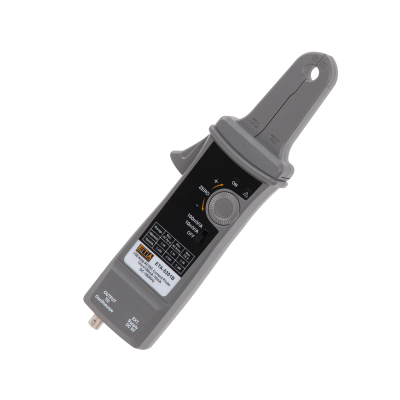

Bandwidth
DC-300KHz
-
Current
DC/AC peak 100A
-
Rise time
≤1.2us
-
Range sensitivity
100mV/A、10mV/A
-
Typical DC Accuracy
3% ± 50mA
-
Maximum operating voltage
CATI600V、CATI 600V、CATII 300V
-
Typical battery type and life
9VNEDA 1604A,IEC 6LR6113 hours minimum
-
Zero adjustment mode
Manual
-
Low battery indication function
Battery voltage <6.5V, indicator red
-
Overload indication
Current exceeds range, buzzer sounds
-
Jaw diameter
Φ11mm
-
-
-

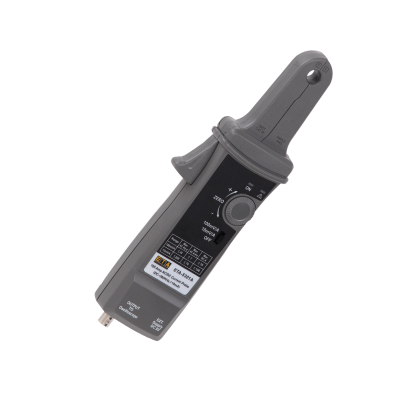

Bandwidth
DC-300KHz
-
Current
DC/AC peak 200A
-
Rise time
≤1.2us
-
Range sensitivity
100mV/A、10mV/A
-
Typical DC Accuracy
3% ± 50mA
-
Maximum operating voltage
CATI600V、CATI 600V、CATII 300V
-
Typical battery type and life
9VNEDA 1604A,IEC 6LR6113 hours minimum (l each)
-
Zero adjustment mode
Manual
-
Low battery indication function
Battery voltage <6.5V, indicator red
-
Overload indication
Current exceeds range, buzzer sounds
-
Jaw diameter
Φ11mm
-
-
-
Bandwidth
DC-3.5MHz
-
Current
DC/AC peak 100A
-
Rise time
≤100ns
-
Range sensitivity
100mV/A、10mV/A
-
Typical DC Accuracy
3% ± 50mA
-
phase shift
DC~65Hz:＜1°
-
Maximum operating voltage
CATI600V、CATI 600V、CATII 300V
-
Typical battery type and life
9VNEDA 1604A,IEC 6LR6113 hours minimum (l each)
-
Zero adjustment mode
Automatic
-
Low battery indication function
Battery voltage <6.5V, indicator red
-
Overload indication
Current exceeds range, buzzer sounds
-
Jaw diameter
Φ11.8mm
-
-
-
Bandwidth
DC-5.5MHz
-
Current
DC/AC peak 100A
-
Rise time
≤64ns
-
Range sensitivity
100mV/A、10mV/A
-
Typical DC Accuracy
3% ± 50mA
-
phase shift
DC~65Hz:＜1°
-
Maximum operating voltage
CATI600V、CATI 600V、CATII 300V
-
Typical battery type and life
9VNEDA 1604A,IEC 6LR6113 hours minimum
-
Zero adjustment mode
Automatic
-
Low battery indication function
Battery voltage <6.5V, indicator red
-
Overload indication
Current exceeds range, buzzer sounds
-
Jaw diameter
Φ11.8mm
-
-
-
Bandwidth
DC-600KHz
-
Current
DC/AC peak 100A
-
Rise time
≤580ns
-
Range sensitivity
100mV/A、10mV/A
-
Typical DC Accuracy
3% ± 50mA
-
phase shift
DC~65Hz:＜1.5°
-
Maximum operating voltage
CATI600V、CATI 600V、CATII 300V
-
Typical battery type and life
9VNEDA 1604A,IEC 6LR6113 hours minimum (l each)
-
Zero adjustment mode
Automatic
-
Low battery indication function
Battery voltage <6.5V, indicator red
-
Overload indication
Current exceeds range, buzzer sounds
-
Jaw diameter
Φ11.8mm
-
-
-
Bandwidth
DC-1.5MHz
-
Current
DC/AC peak 100A
-
Rise time
≤230ns
-
Range sensitivity
100mV/A、10mV/A
-
Typical DC Accuracy
3% ± 50mA
-
phase shift
DC~65Hz:＜1.5°
-
Maximum operating voltage
CATI600V、CATI 600V、CATII 300V
-
Typical battery type and life
9VNEDA 1604A,IEC 6LR6113 hours minimum
-
Zero adjustment mode
Automatic
-
Low battery indication function
Battery voltage <6.5V, indicator red
-
Overload indication
Current exceeds range, buzzer sounds
-
Jaw diameter
Φ11.8mm
-
